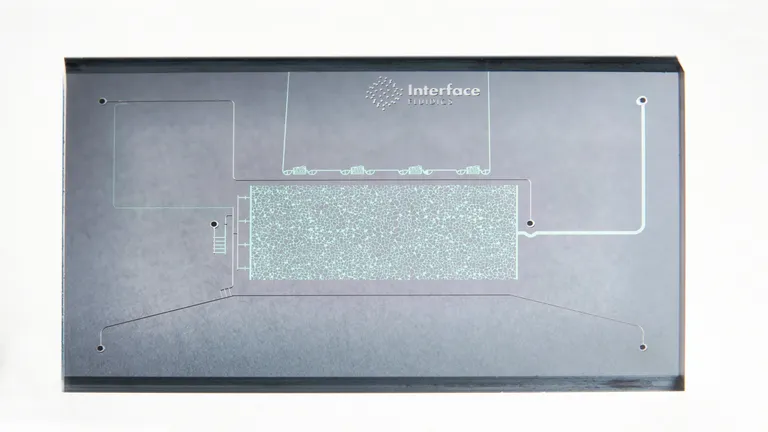

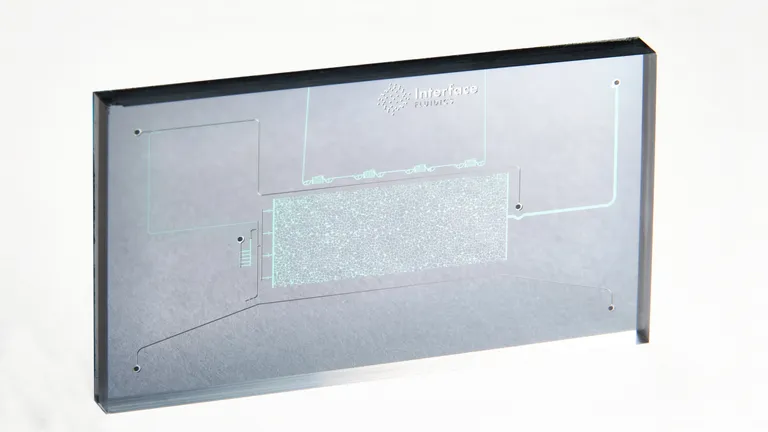

EOR S200 CHIP - 1um x 2um x 50um
SKU: 300062
$650.00USD
Volume Pricing (USD)
1+ units
$650.00
5+ units
$580.00
10+ units
$550.00
20+ units
$515.00
40+ units
$485.00
80+ units
$450.00
120+ units
$417.50
The EOR S200 Chip is a screening tool designed to identify the most effective gas and its respective concentration for enhanced oil recovery in reservoirs. It enables visualization and quantification of oil displacement performance, while also revealing potential formation damage mechanisms caused by the injected gas.
The chip is designed for fine-tuned gas flow control in porous media, enabling studies that can be conducted over long periods of time (from minutes to hours).
Use Cases
Enhanced Oil Recovery Gas Injection CO2 Storage H2 Storage Wax Appearance Temperature Wax Inhibition Scale Inhibition Asphaltene Inhibition
Specifications
Porous Media Specifications
Pore Throats: 10-20 μm wide, 1 μm deep Porosity: 20.1% Permeability: 5 mD (calculated) 0.005 D Volume: Varies 20.1 nL
Channel Specifications
Gas Inlets: 15 μm wide, 2μm deep Outlets: 200 μm wide, 1μm deep Other: 50 μm wide, 50μm deep
Number of Ports
6
Holder Compatibility
Liquid Confined
