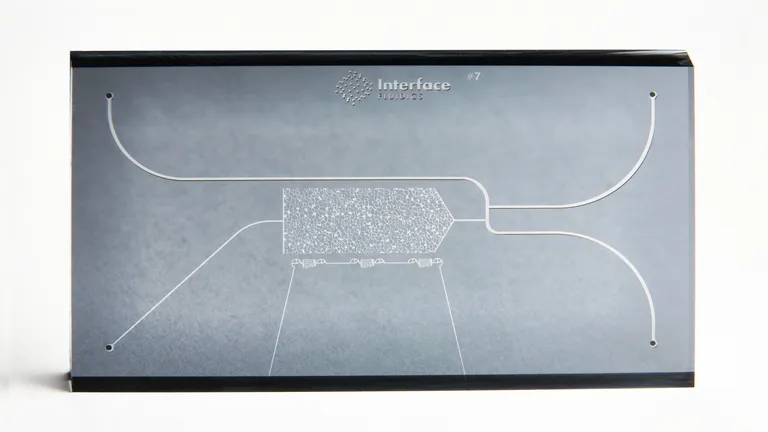

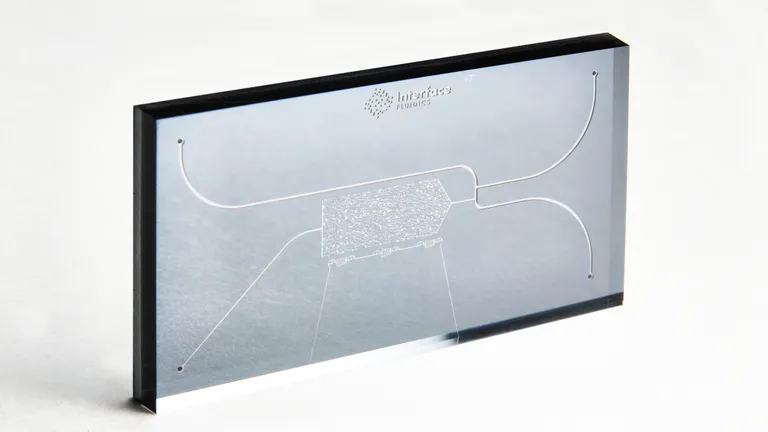

EOR S120 CHIP - 15um x 70um
SKU: 300044
$650.00USD
Volume Pricing (USD)
1+ units
$650.00
5+ units
$580.00
10+ units
$550.00
20+ units
$515.00
40+ units
$485.00
80+ units
$450.00
120+ units
$417.50
The EOR S120 Chip is a platform chip used to study a wide variety of fluid interactions in porous media, including polymer injection for Enhanced Oil Recovery, wax appearance temperature, wax/scale/asphaltene inhibition, and carbon dioxide and hydrogen storage.
The chip is particularly effective as a screening tool, designed to identify the most effective polymer and polymer concentration for EOR operations. It enables visualization and quantification of oil displacement performance, while also revealing potential formation damage mechanisms caused by injected polymers.
Use Cases
Enhanced Oil Recovery Polymer Injection CO2 Storage H2 Storage Wax Appearance Temperature Wax Inhibition Scale Inhibition Asphaltene Inhibition
Specifications
Porous Media Specifications
Pore Throats: 10-20 μm wide, 15 μm deep Porosity: 21.2% Permeability: 550 mD (calculated) 0.55 D Volume: 130.6 nL
Channel Specifications
Inlets: 200 μm wide, 70 μm deep Outlets: 50 μm wide, 15 μm deep
Number of Ports
4
Holder Compatibility
Screw Top Liquid Confined
