Regain Conductivity 40/70 Mesh. Heterogeneous Porous Media Chip with 36% Porosity, 7.8 μm Depth, 620 mD Permeability and 3 Ports
SKU: 300022

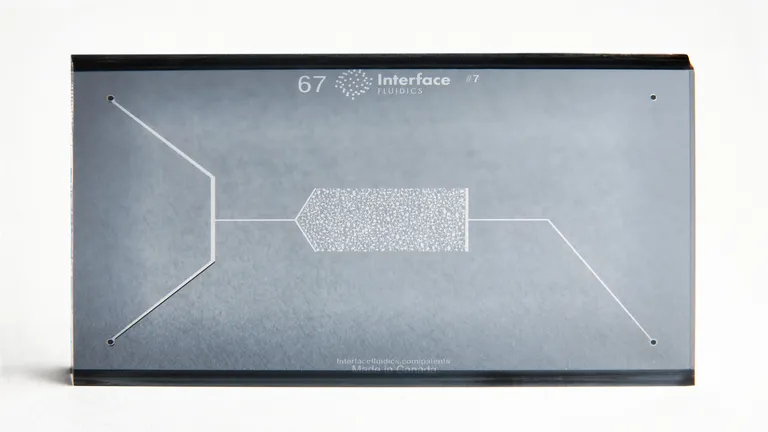

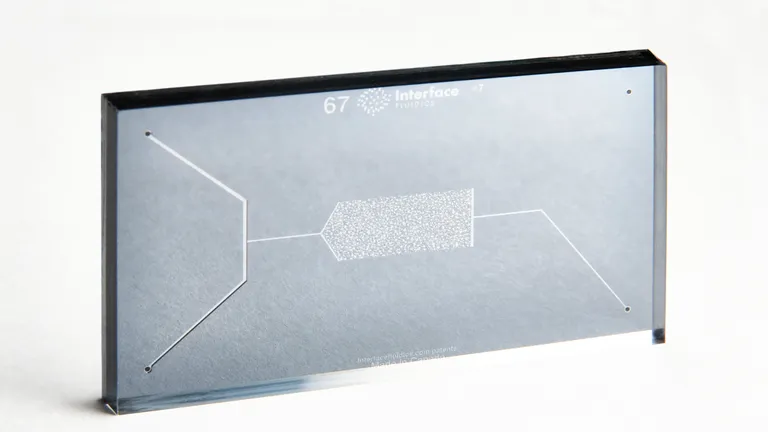

The Regain S200 Chip, used with our Regain Conductivity test procedure, replicates the 40/70 mesh Proppant Pack test to help compare friction reducers and identify top performers.
This chip includes a heterogeneous porous media with 36% porosity and 620 mD permeability (calculated), along with 2 inlet channels and 1 outlet channel.
Use Cases
Regain Conductivity CO2 Storage H2 Storage Wax Appearance Temperature Wax Inhibition Scale Inhibition Asphaltene Inhibition
Specifications
Porous Media Specifications
Pore Throats: 10-20 μm wide, 7.8 μm deep Porosity: 36% Permeability: 620 mD (calculated) 0.62D Volume: 117 nL
Channel Specifications
Inlets: 250 μm wide, 50-70 μm deep Outlets: 100 μm wide, 7.8 μm deep
Number of Ports
3
Holder Compatibility
Screw Top Liquid Confined
