MIXING S100 CHIP - 10um
SKU: 300012
$650.00USD
Volume Pricing (USD)
1+ units
$650.00
5+ units
$580.00
10+ units
$550.00
20+ units
$515.00
40+ units
$485.00
80+ units
$450.00
120+ units
$417.50

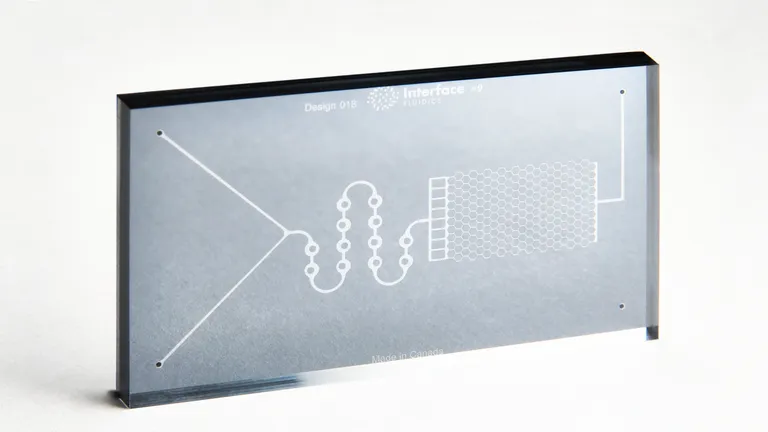

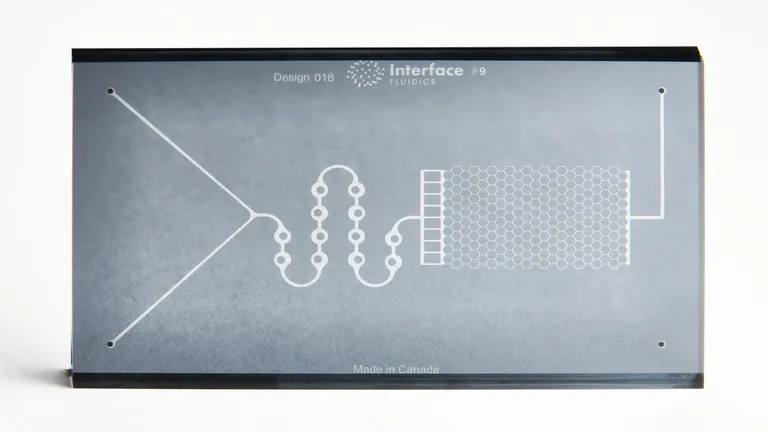

The Mixing S100 Chip includes a hexagonal homogeneous porous media and mixing rings and enables co-injection of fluids for on-chip mixing, and visualization and measurement of fluid performance. The chip can be used to study foam stability (understanding of how salinity, temperature, pressure, gas, and flow rate all impact foam performance) and foam mobility reduction factor (how foam reduces the mobility of the injection gas and impacts oil production).
Use Cases
Foam Rheology Emulsions
Specifications
Porous Media Specifications
Hexagonal Porous Media: 30 μm wide, 10 μm deep
Channel Specifications
Mixing Rings: - Inner Diameter: 0.5 mm - Outer Diameter: 1.0 mm - Radially displaced by: 0.05-0.1 mm Foam Generator: 200 μm wide, 10 μm deep
Number of Ports
3
Holder Compatibility
Screw Top Liquid Confined
